The global population has increased from 5.3 billion in 1990 to 7.8 billion in 2018. With this increase, there has been a race towards rapid industrialization to provide so called better quality of living. This has resulted in the rise of both air and water pollution. Numerous measures have been taken to curb the extent of toxic waste especially in water resources, as water is one of the fundamental essentials of our everyday life. Although the numbers have increased over the years, 663 million people worldwide still lack improved drinking water resources, while 159 million people still use surface water[1].

  In recent years, the development of membrane technology has geared up as a mean to overcome water pollution effectively. Statistics show that membrane technologies contribute up to 53 % of the total world processes for clean water production[2]. The increasing demand in membrane technology is mainly due to their features itself as well as the ability to apply them in sustainable industrial designs. Ideally, membranes should have characteristics such as increased life span, good mechanical, thermal, and chemical stability, low cost, and minimum maintenance. The use of membranes also enables the improvement of industrial design whereby less land space is required for the setting up of various processes, energy consumption is low, and no additional chemical is needed when compared to conventional technologies. This renders membranes as an economical technology with potential in various fields such as separation, filtration, and catalysis for water treatment.

  Membranes have been used for water treatment for more than 45 years. A wide range of materials are available for the fabrication of membranes. These materials can generally be grouped into ceramic-based and polymeric-based membranes. Ceramic-based membranes are popular as they are thermally and chemically more stable, have high porosity, and have a longer life span though, they are more expensive and brittle. Polymer-based membranes on the other hand offer flexibility in design, are cheaper, can remove dissolved ions and organics more efficiently[3]. Nevertheless, they also have some disadvantages including high hydrophobicity, exposure to biofouling, low fluxes, and low mechanical strength. We realize that there is abundant literature on both ceramic- and polymeric-based membranes[4-8]. Particularly, recent reviews on polymer Nano composites for membrane applications have emerged[9]. Majority of these reviews are focused on synthetic polymers. Reviews related to natural polymer composite membranes can be hardly found in the literature[10,11]. As such, this chapter has been organized to give the readers an overview of the different types of natural polymer composite membranes and their functions. This chapter highlights the application of novel cellulose-, chitosan-, and natural rubber-based composite membranes in sustainable technologies between 2010 and 2015.

Table 1: Summary of Natural polymer (Cellulose) composite membranes (Types: TFC- Thin film composites, MM- Mixed matrix, PI- Polymer Inclusion).

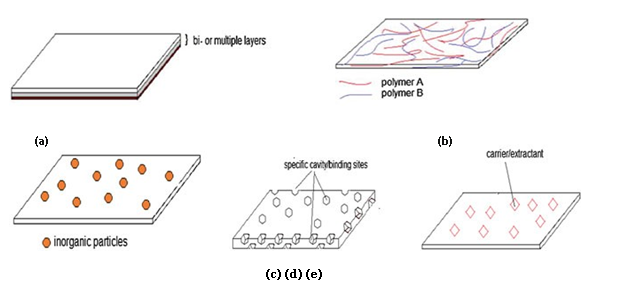

Figure 1.1: Structures of various natural composite membranes: a thin-film composite, b blends,

C mixed matrix, d molecular imprinted, and e polymer inclusion (Noor Hana, 2016)

Figure 1.2: Various shapes of natural composite membranes: a flat sheet, b hallow fiber, and c Nano fibrous.

Main Functions and Characteristics of Natural Composite Membranes

  As natural polymer composite membranes can be either inert or catalytically active, the role of these membranes can be categorized based on the following areas:

• Filtration: This process can be further classified according to the pore size of the filter. This includes microfiltration, ultrafiltration, Nano filtration, and reverse and forward osmosis. A detailed summary on various classes, their respective pore sizes, and the materials these filters are capable of removing has been given elsewhere[37,38].

• Adsorption: This process involves the capture of substances by physical or chemical means. Physisorption is a reversible reaction that allows substance recovery possible, while the latter is not. Adsorption has been extensively applied for their removal of multivalent heavy metal ions, for example, Pb(II), Cd(II), and Cr(IV)[39]. Organic substances such as phenol, dyes and art emidine can also be removed and recovered by using molecular imprinted membranes with high selectivity.

• Catalysis: In these membranes, metal or semiconductor nanoparticles are normally incorporated to serve as the active component (catalyst) for a certain catalytic reaction[40,41,17]. When semiconductors such as TiO₂ or ZnO are employed, a light source (e.g., UV, sunlight) is needed to initiate the reaction. Thus far, the application of catalytic membranes is limited to the degradation of synthetic dyes and nitro aromatic compounds and photocatalytic antimicrobial purposes.

• Antimicrobial/fouling: One of the biggest challenges of membranes in water treatment application is fouling or particularly biofouling. Fouling is the buildup of unwanted particulates onto a wetted surface. This layer of particulate tends to cause several losses in performance and reduces the life span of membranes. Furthermore, it results in high cleaning maintenance.

• Generally, there are three approaches to reduce the biofouling problems in a membrane:

• Suppress the adhesion of biologic particulates onto the membrane;

• Biocide leaching or toxic release;

• Contact killing.

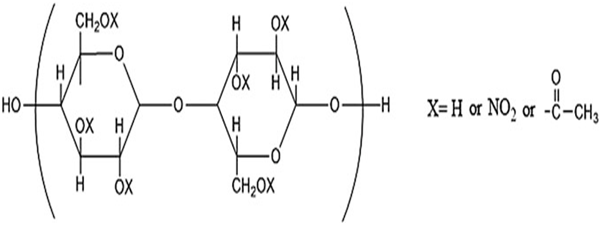

Figure 2: Commonly used cellulose structures in membrane technology.

  The first strategy involves the alteration of the surface hydrophilicity, roughness, or charges of the membranes. In contrast, the latter two strategies address the biofouling problems by incorporating inorganic species as the antimicrobial agent in the membranes. Silver Nano particles, carbon Nano tubes oxide nanoparticles and ammonium salts are some of the examples. Organic antimicrobial agents can also be employed. However, this is less favorable due to their poorer ability to with stand adverse processing conditions as compared to inorganic antimicrobial agents.

  The application of cellulose-based membranes in water filtration has been greatly explored since the 1960s. In fact, cellulose acetate membranes were the first membranes used in commercial reverse osmosis plants in 1965 (History Reverse Osmosis link, 2015). To date, cellulose filter membranes with various pore sizes can be found commercially to remove different sizes of substances. Cellulose membranes have been used in a broad range of filtration spectra that cover from microfiltration to osmosis processes[42,43]. They are capable of removing bacteria, viruses, antibiotics, pesticides, synthetic dyes, oil and grease, heavy metals, and even dissolved salts. The features of cellulose filter membranes can be improved by adding additives. Bentonite[44,45], boehmite[46], modified coal[47], and Sodium Dodecyl Sulfate (SDS)[20] are incorporated into cellulose to increase the water permeability of the filter membranes (higher flux) by modifying the membranes’ surface porosity and hydrophilicity. Other additives such as silica[24], iron Nano particles[24] and Carbon Nano Tubes[48] also improve the cellulose membrane in terms of their durability and thermal and mechanical properties. Nonetheless, a decrement in salt rejection and mechanical strength has been observed when Poly Octahedral Slices Quioxane (POSQ) nanoparticles are applied as the additives[49]. In most cases, adsorption occurs besides filtration. Positively charged heavy metal ions are favorably adsorbed on to the negatively charged cellulose membrane, while water permeates through the interconnected pores of the membrane. However, due to the low surface area of cellulose, the absorptive sites are occupied quickly by metal ions and cause a drastic drop in metal ion rejection. Completing agents (e.g. humic acid, phytic acid), adsorbent particles (e.g. iron oxide, graphite, silica) or carriers (e.g. Calix resorcinarens) are integrated into the cellulose membranes to increase the metal removal efficiency from water. A common feature between these additives is their capability to form interaction with metal ions. For example, activated carbon and iron oxides offer negatively charged surfaces to adsorbed U(VI) and Pb(II), respectively, through complexation[19,32]. Nevertheless, the metal removal efficiency of cellulose composite membranes is also dependent on other parameters such as pH, do pant, concentration of metal ions, and temperature[36]. The fabrication of silver–cellulose membranes and their biofouling resistance properties have been reported in many studies[50,51]. Silver nanoparticles not only increase the surface hydrophilicity of the membrane, brutal so release the silver ions (biocides) that will eventually kill bacteria. Nevertheless, the strength of the bio-fouling resistance of silver–cellulose membranes is dependent on the amount, size and the location of silver nanoparticles in the membrane[52] conducted SEM-EDS mapping studies on a series of Ag polymer membranes and correlated them with their antimicrobial properties. They demonstrated that the silver nano particles located on the player of the membranes are easier to reach out and hence exert higher antibacterial properties. Copper oxide particles in the cellulose membranes also show superior anti-bacterial properties[16]. Similar to silver; its origin of toxicity comes from the leaching of metal ions. Photo catalytic antibacterial properties of semiconductor oxides especially TiO₂ and ZnO in cellulose membranes have also been explored. Under the irradiation of light, reactive oxygen species such as OH^-, H₂O₂, and O</span^2- are generated. These oxygen species can penetrate through bacteria’s cell wall and inhibit their growth[53,17]. Besides imparting antimicrobial properties, the photo catalytic properties of these membranes can also be used for the degradation of pollutants in water. Furthermore, the presence of semiconductor oxides can lead to simultaneous improvement in membrane stability, flux permeability, and porosity[54,55,15,17] have prepared multifunctional TiO₂ and TiO₂/ZnO^- cellulose membranes for water purification. These membranes were used for concurrent filtration and photo degradation to remove methylene blue and humic acid with high flux and anti-fouling properties. To what extent is it ‘green’? This is one of the questions which frequently pop up when the topic of discussion circulates around renewable materials. When discussing natural composite membranes, the extent to which it is ‘green’ can be reflected from several aspects that is the preparation, materials and function of the membrane.

  Electro spinning is a technology for preparation of ultra- long one-dimensional fiber materials with diameters in the scale of nanometer, which exhibits high specific area. Therefore, electro spinning membrane may have a great potential for the adsorption of metal ions. It is well known that electro spinning nanofibers have found applications in bio- medicine[56,57], tissue engineering[58,73] and armored fabric materials[59]. Introduction of functional groups onto the surface of electro spinning nanofibers could be further improved their utilization as adsorbents to remove heavy metal ions. Indeed, sulfinyl group[60], Carboxyl[61,62], amino[63,64], thiol group[65,71,74] and thioether group[66] have been used and resultant materials showed excellent adsorption capacity towards metal ions for example, Cu(II)[40], Cr(VI)[68], Cr(III)[67,75]. In this work, we further explored the composite of CA/PVP by functionalizing with thiol groups. Nanofiber membranes were prepared using a mixture of CA/PVP via an electro spinning technique. Subsequently, the PVP of the membranes was partially removed and the CA was further deacetylated before functionalization with thiol groups. Characterization of the obtained nanofibers was completed using infrared spectroscopy, scanning electron microscopy, and thermo gravimetric analysis. The adsorption behaviors and kinetics of the materials towards selected metal ions, Cu (II), Cd(II) and Pb(II), were investigated. The durability of the material was estimated using repetitive adsorption-desorption. The nanofiber membranes are prepared using an electro spinning technique, and then the membranes are treated with water and alcoholic KOH to partially remove polyvinylpyrrolidone and deacetylate the cellulose acetate in order to increase binding site when further being functionalized with thiol groups using thioglycolic acid. In the earlier worker’s other references, the membranes were modified directly without being treated with water or other solvent. The advantage of the proposed thiol-functionalized cellulose Nano-fibers is greater adsorption capacity and faster adsorption speed.

Experimental

  Cellulose Acetate (CA) is a useful material in industry with applications in the fields of coating, film and membrane separation. Through electro spinning, CA can also be transformed into nanofiber materials. In electro spinning, choosing appropriate solvent is vital because the solvent dictates not only whether a material can be electro spun into nanofibers, but also the quality of the nanofibers. It was reported that a mixed solvent of acetone/dimethyl acetyl amide (DMAc) (2/1) was the most versatile solvent for the electro spinning of CA (Liu H et. al, 2002). CA can also be mixed with other polymers to produce nanofibers, for example, CA/PolyVinylPyrrolidone (PVP) fibers were successfully prepared using electro spinning[42].

Preparation of the cellulose nanofiber membranes

Deacetylation

  The CA/PVP nanofiber membranes were immersed in deionized water to partially remove the PVP component under super sonification for 3 h. After being dried at 80 °C under vacuum for 24 h, the membranes were deacetylated in alcoholic KOH solution (0.5 mol L^-1) for 3 h. The regenerated cellulose membranes (RCM) were then rinsed with distilled water for several times and dried under vacuum at 80°C.

DSacetyl of RCM

  RCM (0.1 g) was added to a solution of NaOH (0.2 mol L^-1) in a mixed solvent (EtOH/H₂O = 5/4, 10 mL) at ambient temperature for 72 h under stirring. The excessive base was titrated with HCl (0.1 mol L^-1) using phenolphthalein as an indicator.

Modification of RCM with thioglycolic acid

  RCM (6 g) were placed in a mixture of thioglycolic acid (50 mL), THF (50 mL) and suphuric acid (98%, 0.2 mL) in a flask (250 mL). The reaction mixture was gently stirred at 40 °C for 2 days. Then the membranes were successively washed with distilled water till neutrality before being further washed with ethanol for a few times to remove the water of the material as much as possible. The thiol-functionalized cellulose nanofiber membranes (TCM) were dried under vacuum at 30 °C for 2 days before being used in next step.

The optimization of adsorption conditions

  Throughout this work, the membrane used for investigations was 50 mg and the volume of solution was controlled at 20 mL. The temperature for all experiments was controlled at 27 °C.

Effect of acidity

  TCM (50 mg) was placed in a conical flask containing of solution (20.0 mL, 50 mg L^-1) of M(II) (M = Cu, Cd, Pb). The initial pH of the solutions was adjusted to between 2.0 and 7.0 using either HCl (0.1 mol L^-1) or NaOH (0.1 mol L^-1) aqueous solution. The solution was kept at 27 °C under agitation for 36 h. The content of the metal ion remained in the solution was analyzed using AAS.

Effect of contacting time

  TCM (50 mg) was added to M(II) solution (20 mL, 50 mg L^-1). To the mixture was added HCl (0.1 mol L^-1) or NaOH (0.1 mol L^-1) aqueous solution to adjust the pH value. Agitation of the solution was performed at 27 °C for 12 h. The concentrations of the metal ions remained in the solution were measured every 2 h using AAS.

Adsorption isotherms

  To a conical flask (50 mL) was added TCM (50 mg) and the metal ions solution (20 mL), whose pH value was adjusted to 6. The concentration of the metal ions varied from 10 to 80 mg L^-1. The solution was kept at 27 °C under agitation for 12 h. The concentration of the metal ion remained in the solution was analyzed using AAS.

Desorption of the metal ions and repetitive adsorption

  TCM (50 mg) adsorbed with the metal ions as described above (initial concentration 50 mg L^-1) was used in the de- sorption investigation. The desorption of metal ions was carried out in HCl aqueous solutions (25 mL) of varying concentrations, ranging from 1 to 8 mol L^-1. The conical flasks were kept at 27 °C under agitation for 36 h. The concentrations of the metal ions in the solutions were analyzed using AAS. After the desorption at optimal acidity, the membranes were rinsed with distilled water to remove any residual solution and then dried in vacuum at 30 °C for 2 days before being used in next round of adsorption-desorption investigation.

Electro spinning and grafting of thiol groups

  A mixed solvent of acetone and DMAc was used for electro spinning. Various ratios of CA/PVP were used for the preparation of the nanofiber membranes. The morphology of the five CA/PVP composite fibers is shown in Figure 1. As shown by their SEM images, all of the electro spun nanofibers showed smooth surfaces and were cylindrical in shape. But it is noticeable that the smoothness of the fiber decreased with the increase of the ratio of CA/PVP. Com- pared to the fibers at other ratio, the material obtained at the ratio of 25/9 exhibited relatively even distributions in diameters. Therefore, the ratio of 25/9 was used throughout this work. To increase the surface area of the fibers, the water solubility of PVP was exploited. As shown in Figure 2, the electro spun CA/PVP composite fibers remained in a cylindrical form with slight decrease in diameter after being treated with water and grooves were found on the surface of the washed fibers which would lead to larger surface area. The water-treated fibers were further functionalized with thiol groups. To expose as many hydroxyl groups on the fiber surfaces as possible, the materials were deacetylated in alcoholic KOH solution[68].

  The deacetylation efficiency was obtained using back-titration[69]. It was found that DS acetyl value decreased from 2.45 to 0.47. Figure 2 shows that the deacetylation altered significantly the morphologies of the nanofibers and fusions between the nanofibers were also observed. Furthermore, the CA nanofibers were slightly swollen after the deacetylation. The swelling could be attributed to the exposed hydroxyl groups which show strong affinity towards water. The deacetylated membrane was further functionalized with thiol groups to generate TCM using the procedure described in the literature[70]. In the reaction, thioglycolic acid reacted with the hydroxyl group to form ester bond to achieve the functionalization. The morphologies of the nanofibers before and after the functionalization (Figures 3 and 4) were hardly distinguishable.

  Infrared spectra of the washed electro spun CA/PVP membranes, RCM and TCM were shown in Figure 5. The broad band between 3400 and 3600 cm^-1 in the infrared spectra of CA/PVP membranes is attributed to the hydroxyl group. After the deacetylation, additional hydroxyl groups were exposed on the surface of the materials, which is in agreement with the enhancement of the broad band. Figure 5(a) shows the characteristic absorption bands for the ester carbonyl (C=O, 1747 cm^-1) and C–O–C skeleton (1235 cm^-1) (Ma Z, Ramakrishna S.2008)[71]. But these bands disappeared entirely after the deacetylation in alcohol as shown in Figure 5(b), which suggests nearly complete deacetylation on the surface of the material (RCM). In Figure 5(c) is shown the infrared spectrum of the membrane functionalized with thioglycolic acid. The restoration of a strong and sharp band near 1747 cm^-1 indicates the presence of the ester carbonyl group resulted from the functionalization. The weak absorption band of –SH group at 2573 cm^-1[72] further supports the success of functionalization.

  Nanofiber membranes were prepared using a mixture of CA/PVP via electro spinning technique. The nanofiber membranes were further converted into membranes possessing thiol functional group. The prepared material showed improved surface area after the bleaching of PVP before the functionalization (Figure 6). TGA characterization showed that the thermal stability of the nanofibers (RCM, TCM) was slightly compromised compared to the precursors (CA and PVP). The functionalization of the materials to achieve the desired material (TCM) was confirmed using infrared[73-75].

Figure 3: SEM images of RCM.

Figure 4: SEM images of TCM.

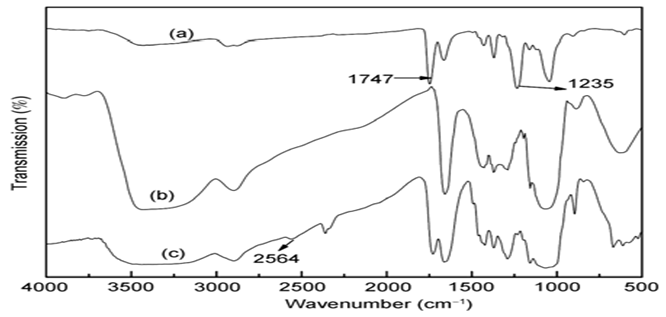

Figure 5: The infrared spectra of (a) the water-bleached CA/PVP mem- branes, (b) RCM and (c) TCM.

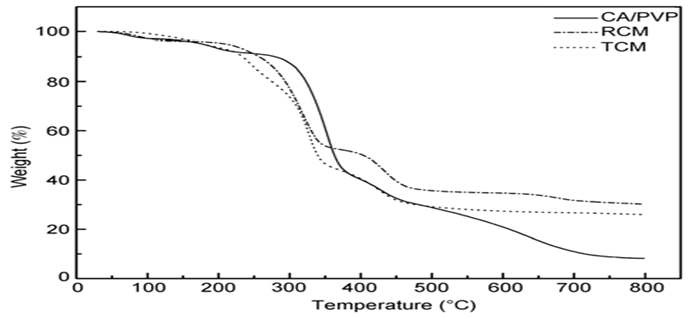

Figure 6: TGA curves of CA/PVP, RCM and TCM.

Conclusion and future prospect

  Developing cost-effective technologies to solve the water pollution problems are critical for sustainable development of human society. The low cost raw cellulosic material has gained increasing attention due to stiffness, biodegradability and renewability. Cellulose fibers are hydrophilic in nature, so it becomes necessary to increase surface roughness for the development of composites with enhanced properties. Surface modification and functionalization of cellulosed- based nanofibers has got quite interesting and economical route for removal of pollutants from wastewater. In recent years, the development of membrane technology has geared up as a means to overcome water pollution effectively.
