Selection of any superconducting material for practical applications highly depends upon different critical parameters like critical temperature (T_c), critical current density (J_c) and critical magnetic field (H_c). Different phases of Cu_0.5Tl_0.5Ba₂Ca_n−1Cu_nO_2n+4−δ high temperature superconductor (HTSCs) family can be synthesized at higher pressure of (~5 GPa) as well as at ambient pressure^[1]. HTSCs samples synthesized at high pressure exhibited relatively higher superconducting properties due to reduction in bulk porosity and higher value of superconducting volume fraction. But large scale production of HTSCs at higher pressure for industrial based applications is a biggest challenge in present time. Therefore, synthesis of HTSCs at ambient pressure is an appropriate way for large production. But presence of voids and pores in higher density is the main disadvantage of this synthesis route, which reduces overall superconducting volume fraction. Another reason for reduction in carrier’s density from an optimal level is mostly caused by the existence of various defects in the form of oxygen deficiencies in ambient pressure synthesized HTSCs samples. So, other than higher pressure synthesis route, numbers of efforts have been made to overcome this problem in which main goal was to improve the superconducting properties of different compounds of HTSCs families by different techniques^[2-4]. This issue is most effectively resolved by increasing the connectivity between the grains and reduction in density of voids and pores by inclusion of various nanoparticles, which is the easiest and efficient ways in this regards. But control on the size, concentration and distribution of these nanoparticles at grain-boundaries of host bulk HTSCs are the real challenges^[5-8]. This uniform distribution of nanoparticles can equally facilitate the transportation of charge carriers across the grain-boundaries but up to a certain optimal level of nanoparticles inclusion after which prominent reduction in superconducting volume fraction takes place. It was found that nature of nanostructures materials added in the host material plays a very crucial role in deciding the resultant effects on superconducting properties. A prominent improvement in superconducting properties of Bi-based superconductor was observed after inclusion of MgO, ZrO₂ and Al₂O₃ nanoparticles^[9-11]. Increase in superconducting volume fraction and sharpness in transition width of Bi-2212 superconducting phase was observed after inclusion of MgO nanoparticles^[12]. The critical current density, volume pinning force density, activation energy and onset temperature in presence of applied magnetic field were improved after alumina nanoparticles inclusion in (Bi, Pb)-2223 superconductor^[13]. The inclusion of various nanoparticles of different materials with variant sizes like Fe₂O₃ with required amount was used to generate the artificial flux pinning centers, which can increase the various infield superconducting parameters^[14]. The crystal structure and J_c value of Y123 superconducting thin film improved after the addition of Ag nanoparticles^[15]. Addition of Ag nanoparticles improved the superconducting and mechanical properties of Bi(Pb)-Sr-Ca-Cu-O superconducting phase, which was attributed to the cementing effects of these metallic nanoparticles at grain-boundaries^[16]. An improvement was observed in critical parameters and superconducting volume fraction of CuTl-1223 matrix after addition of Ag nanoparticles up to x = 1.5 wt. %^[17]. Addition of ZnFe₂O₄ nanoparticles in Gd-Ba₂Cu₃O_7-δ enhanced superconducting parameters up to a certain optimal concentration level^[18]. CoFe₂O₄ nanoparticles addition in YBa₂Cu₃O₇ (Y-123) and Y₃Ba₅Cu₈O₁₈ (Y-358) highly suppressed the superconducting parameters as well as grain size^[19]. The critical current density J_c of Bi-2223 superconductor was increased after inclusion NiFe₂O₄ nanoparticles^[20].

  In this article, we have analyzed and compared the effects of ferri-magnetic MnFe₂O₄ nanoparticles inclusion on structural, morphological and electric transport properties of CuTl-1223 phase in detail. In literature there is no evidence of investigation on the effects of these nanoparticles inclusion in HTSCs materials.

Experimental details
  Solid-state reaction method was used to prepare bulk Cu_0.5Ba₂Ca₂Cu₃O_10-δ precursor. Initially Cu₂(CN)₂.H₂O (99%, BDH), Ba(NO₃)₂ (99.50%, UNI-Chem), and Ca(NO₃)₂•4H₂O (99%, Sigma-Aldrich) were mixed in suitable ratios of 5.149,7.802 and 7.049 grams to prepared 20 grams initial mixture, which was ground for 4 hours in agate motor and pestle to get fine powder. Then fine ground powder was placed in a quartz boat and was heat-treated at 860°C for 24 hours in pre-heated chamber furnace. The heat-treatment process was repeated with intermediate grinding of 1 hour and each time furnace was cooled down to room temperature to finally obtain Cu_0.5Ba₂Ca₂Cu₃O_10-δ precursor.

  MnFe₂O₄ nanoparticles were separately prepared by conventional sol-gel method. Initially we prepared two solutions, one which contain 2.5 gm of manganese nitrate Mn(NO₃)₂ (99.99%, Sigma-Aldrich) and 8 gm of iron nitrate (99.95%, Sigma- Aldrich) mixture in 10 ml ethanol (99.8%, Sigma-Aldrich). Another solution containing mixture of 15 ml of distilled water and 5.7 gm of citric acid (99.5%, Sigma-Aldrich) was prepared separately. Now slowly mixed both solutions with continuous stirring and then adjusted its pH to 5 by adding ammonia solution drop by drop into the final solution. Now heat is maintained at 75°C during continuous stirring. This process continued until solution was converted into gel. The gel was dried in an oven at 110°C for overnight. The dried gel was then annealed at 900°C in order to get MnFe₂O₄ nanoparticles.

  Various concentrations of MnFe₂O₄ nanoparticles and Tl₂O₃ (99%, BDH) were added to Cu_0.5Ba₂Ca₂Cu₃O_10-δ precursor in specific required concentrations. These mixed materials were ground for 1 hour and then pellets were made by using of hydraulic press. Each pellet was enclosed in a gold capsule and sintered in pre-heated chamber furnace at 860°C for 10 min and quenched to room temperature to get required ( MnFe₂O₄)_x/CuTl-1223 nanoparticles-superconductor composites.

Results and Discussion

  Crystal structures of nanoparticles and superconducting composites were determined by XRD technique. XRD pattern of MnFe₂O₄ nanoparticles is shown in Figure.1. Debye-Scherrer’s formula was used to determine the average particle size and was found 20 nm. All the major well indexed diffraction peaks demonstrate the spinal structure of MnFe₂O₄ nanoparticles. MnFe₂O₄ showed cubic structure following space group Fd-3m with calculated lattice parameter a = 4.89Å. XRD spectra of ( MnFe₂O₄)_x/CuTl-1223 composites are shown in Figure.2. Majority of XRD peaks of these composites are indexed according tetragonal structure of CuTl-1223 phase following P4/mmm space group^[21]. XRD of all these samples have also shown the presence of very small amount of impurities and other superconducting phases. Percentage volume fraction of different phases was calculated by using the following relations:

  Where, I (1223), I (1234), I (1212) and I (Impurities) are intensities of respective XRD peaks for CuTl-1223, CuTl-1234, CuTl-1212 phases and unknown impurities, respectively. The calculated relative proportions of these phases present in ( MnFe₂O₄)_x/CuTl-1223 composites are listed in Table 1. We observed a clear decrease in % of volume fraction of CuTl-1223 phase with the addition of MnFe₂O₄ nanoparticles. The intensities of diffraction peaks related to nanoparticles crystal structures are very small, which are suppressed under high intensities diffraction peaks of host CuTl-1223 superconductor. But all the major diffraction peaks are well indexed according to CuTl-1223 phase after addition of MnFe₂O₄ nanoparticles, which indicates unaltered crystal structure of host CuTl-1223 matrix.

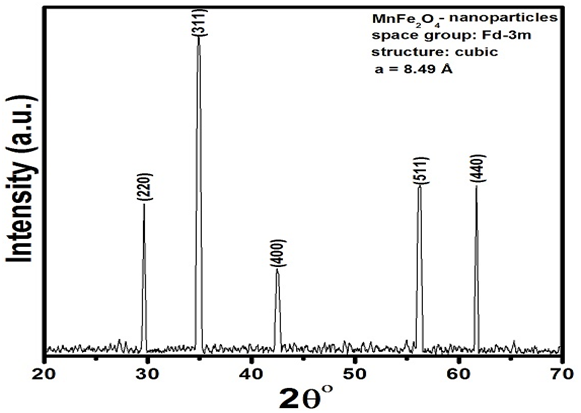

Figure 1: XRD spectrum of (MnFe₂O₄) nanoparticles.

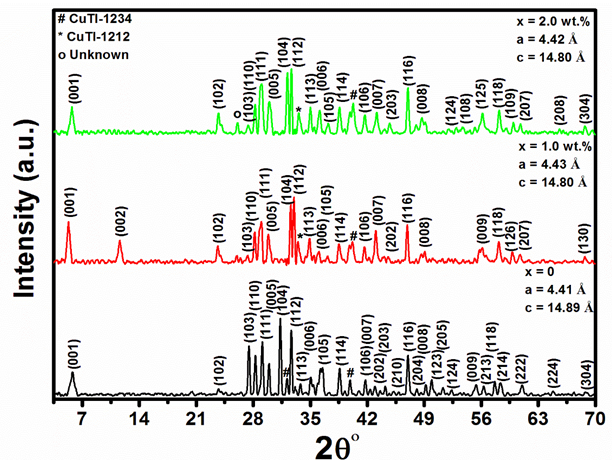

Figure 2: XRD spectra of ( MnFe₂O₄)_x/(CuTl-1223); x = 0, 1.0 and 2.0 wt.% composites.

Table 1: % volume fraction of CuTl-1223, CuTl-1234, CuTl-1212 and unknown impurities present in ( MnFe₂O₄)_x/(CuTl-1223) nanoparticles- superconductor composites x = 0, 1.0 and 2.0 wt. %.

  Morphology of representative( MnFe₂O₄)_x/(CuTl-1223); x = 0 and 1.0 wt.% composites samples was examined by scanning electron microscope(SEM) as shown in Figure.3. We observed relative improvement in inter-grain weak-links and decrease in density of voids and pores after addition MnFe₂O₄ nanoparticles in CuTl-1223 superconducting matrix. The presence of different elements in these ( MnFe₂O₄)_x/(CuTl-1223); x = 0 and x = 1.0 wt.% composites was determined by energy dispersive X-rays (EDX) spectroscopy as shown in Figure 4. The wt.% of different elements present in ( MnFe₂O₄)_x/(CuTl-1223); x = 0 and x = 1.0 wt.% composites are given in Table 2.

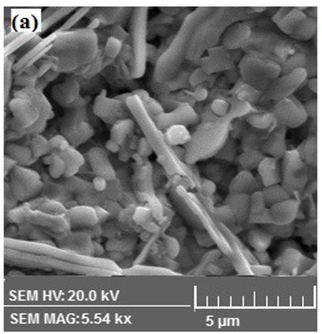

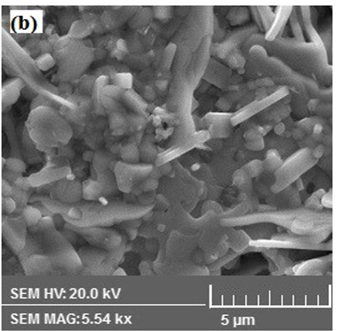

Figure 3: SEM images of ( MnFe₂O₄)_x/(CuTl-1223) composites with (a) x = 0, (b) x = 1.0 wt. %.

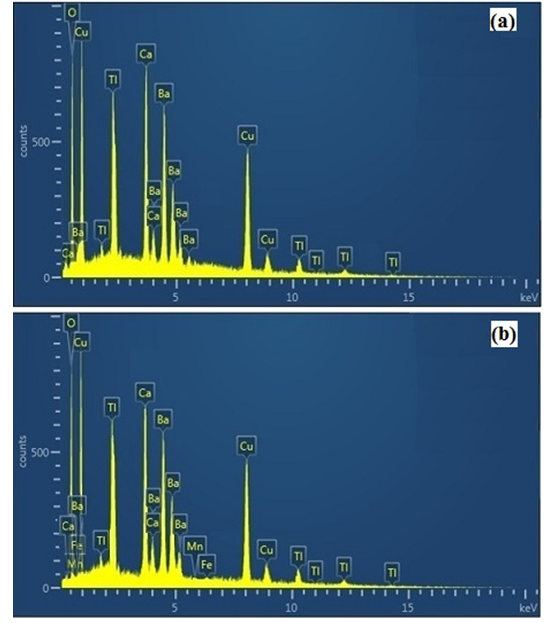

Figure 4: EDX spectra of ( MnFe₂O₄)_x/(CuTl-1223) composites with (a) x = 0, (b) x = 1.0 wt. %.

Table 2: % of different elements present in ( MnFe₂O₄)_x/(CuTl-1223); x = 0, 1.0 wt.% nanoparticles-superconductor composites.

  The trace amount of impurities and different functional groups can be identified with the help of FTIR spectroscopy. Different vibrational oxygen modes in unit cell of cuprates can also be investigated by FTIR absorption spectroscopy. Different oxygen vibrational phonon modes in our samples has been studied by FTIR absorption spectroscopy as we know optimum oxygen content are very useful for superconductivity in HTSCs. FTIR absorption spectra of ( MnFe₂O₄)_x/(CuTl-1223) composites in the range from 400 to 700 cm^-1 are shown in Figure 5. The absorption modes appearing in the range from 400 to 540 cm^-1 are associated with apical oxygen atoms and 541 - 600 cm^-1 represents the modes of CuO₂ planer oxygen atoms^[22]. The modes in the range from 600 to 700 cm^-1 are associated with O_δ oxygen atoms in the charge reservoir layers. Apical oxygen modes of type Tl-O_A-Cu(2) and Cu(1)-O_A-Cu(2) and planner oxygen modes of type Cu(2)-Op-Cu(2) can be observed around 420 cm^-1, 459 cm^-1 and 543 cm^-1, respectively for un-added pure CuTl-1223 sample. All absorption bands almost remained unchanged after the addition of MnFe₂O₄ nanoparticles. By comparing the FTIR absorption spectra of pure and nanoparticles added samples, we found that the stoichiometry and structure of host CuTl-1223 matrix remained un-disturbed after the inclusion of these MnFe₂O₄ nanoparticles. Therefore, FTIR absorption spectroscopy also indicated the occupancy of these nanoparticles at inter-granular sites of host CuTl-1223 matrix.

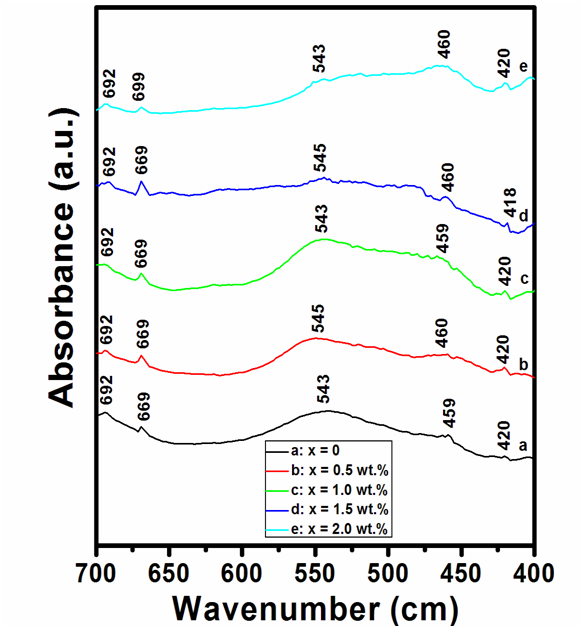

Figure 5: FTIR absorption spectra of ( MnFe₂O₄)_x/(CuTl-1223) composites with (a) x = 0, (b) x = 0.5 wt.%, (c) x = 1.0 wt.%, (d) x = 1.5 Wt.% and (e) x = 2.0 wt. %.

  The resistivity versus temperature measurements of ( MnFe₂O₄)_x/(CuTl-1223); ( x = 0, 0.5, 1.5 and 2.0 wt.% ) nanoparticles- superconducting composites are shown in Figure 6. The variation of T_c^onset (K) with respect to various concentrations of MnFe₂O₄ nanoparticles in CuTl-1223 superconducting matrix is shown in the inset of Figure 6. Normally T_c^onset (K) depends upon electronic properties of given material while T_c (0) depends upon micro-structural characteristics of material and carrier’s density in CuO₂ planes^[23-27]. After the addition of MnFe₂O₄ nanoparticles, the value of T_c^onset (K) was decreased, which showed the reduction in superconducting volume fraction and cooper pairs formation across transition from normal state to superconducting state. The reduction in cooper pairs formation is most probably due to enhanced scattering cross-section caused by the magnetic nature of these particles. Therefore, these nanoparticles act as affective scattering centers at grain-boundaries due to which overall all superconductivity was suppressed.

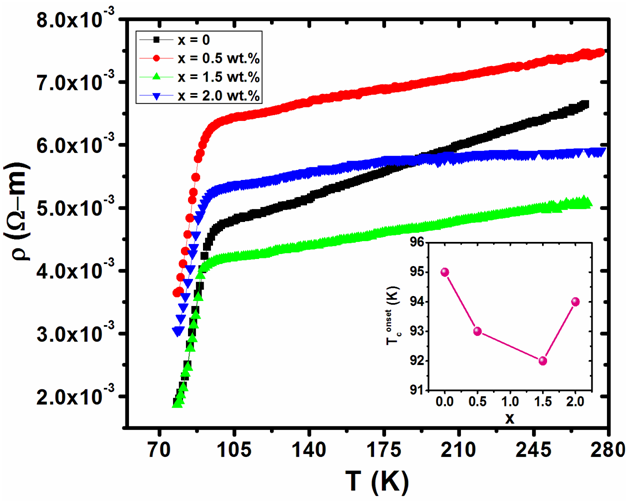

Figure 6: Resistivity versus temperature measurements of ( MnFe₂O₄) _x/CuTl-1223 composites with x = 0, 0.5, 1.5 and 2.0 wt. % and in the inset is shown the variation in T_c ^onset (K) with nanoparticles content (x).

Conclusion

  The effects of magnetic MnFe₂O₄ nanoparticles addition on micro-structural, morphological and transport characteristics of CuTl-1223 phase were studied and compared. The crystal structure and stoichiometry of CuTl-1223 phase were not influenced by the addition of these nanoparticles at grain-boundaries. The suppression of superconductivity was observed with inclusion these nanoparticles. Superconducting volume fraction and cooper pairs density was suppressed due to enhanced scattering cross-section across these magnetic nanoparticles at grain-boundaries. Most challenging problem in these superconducting composites is to make uniform and homogeneous distribution of MnFe₂O₄ nanoparticles or any other nanostructures at grain-boundaries of host CuTl-1223 superconductor. Therefore, somehow non-monotonic behavior in variation of normal state resistivity and other superconducting parameters of ( MnFe₂O₄) _x/CuTl-1223 composites was observed, which was associated with inhomogeneous distribution of MnFe₂O₄ nanoparticles at the grain-boundaries of bulk CuTl-1223 superconducting phase.
