Two-Photon Absorption (TPA) is a nonlinear optical phenomenon which occurs through simultaneous absorption of two photons. Because of quadratic dependence on the incident light intensity in the TPA process, the efficiency becomes largest at the focal point, allowing a variety of optical applications such as three-dimensional optical memory^[1], two-photon Photodynamic Therapy (PDT)^[2], and optical limiting^[3]. Porphyrin is a potential candidate for TPA materials because of its large π-conjugated electron system. But simple porphyrins have only small σ⁽²⁾ values less than a few tens of GM (1 GM = 10-50 cm⁴ s molecule^-1 photon^-1).

  We reported that butadiyne-linked bisporphyrin 1 as shown Scheme 1 showed an effective TPA cross section value (eff_σ⁽²⁾) of 7,700 GM^[4]. The large enhancement is mainly achieved by the expansion of π-conjugation between porphyrins by linking with triple bonds. To obtain insights into a further increase of the eff_σ⁽²⁾ value, it is interesting to introduce an electron acceptor group to a conjugated bisporphyrin in order to polarize the molecule. Here, we report synthesis and preliminary optical properties of novel ethylene-linked bisporphyrin 2 having naphthalene bisimide as an electron acceptor at the central part of the molecule. Such the D-A-D type structure is not common in the molecular systems with porphyrin. (Scheme 1)

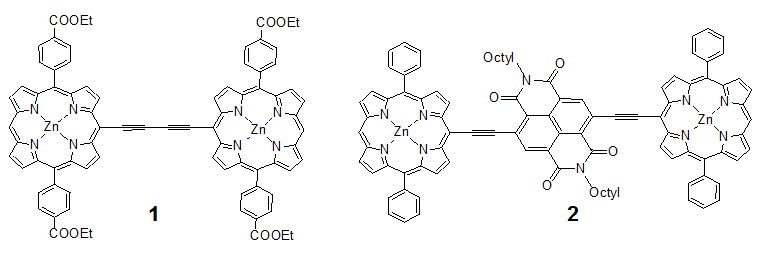

Scheme 1: Structures of bisporphyrins 1 and 2.

Materials and Methods

General procedures
  ¹H NMR spectra were recorded on JEOL JNM-ECP 600 spectrometer. Chemical shifts are reported on δ scale with respect to TMS as an internal standard. Coupling constants (J) are reported in Hertz (Hz). UV-vis spectra were measured by a Shimadzu UV-3100 PC spectrometer. Fluorescence spectra were recorded using a Hitachi F-4500 spectrometer. MALDI-TOF mass spectra were obtained with a PerSeptive-Biosystems Voyager-DE STR spectrometer with dithranol as a matrix. TLC was performed on analytical glass TLC plates silica gel coated with 60 F254 (E. Merck). Column chromatography was performed using a column packed with either silica gel 60 N (Kanto Chemical, spherical, neutral, 63-210 μm). Preparative GPC was conducted using Japan Analytical Industry LC-908 (column; TSK gel G3000H, eluent; pyridine). Isocyanuric acid (95%), bromine (99%), octyl amine (98%), trifluoroacetic acid (98%), CHCl₃ (99%), triethylamine (99%), N-bromosuccinimide (98%), zinc acetate dihydrate (99%), THF (99.5%), Pd(PPh₃)₂Cl₂ (98%), and AsPh₃ (95%) were purchased from Wako Pure Chemical Industries. Chloranil (97%) was purchased from Nacalai tesque.

Synthesis
Dibromoisocyanuric acid (4)
   Isocyanuric acid (5.16 g, 0.04 mol), LiOH (1.92 g, 0.08 mol), and bromine (25.6 g, 0.16 mol) were added into 400 ml of water. After stirring for 2 hours, the reaction solution was cooled in refrigerator for 24 hours, and then white solid was separated by filtration to afford the title compound (84%). ¹H NMR (600 MHz, DMSO-d₆) δ 11.1 (s, NH).

2,6-Dibromonaphthalene tetracarboxylic dianhydride (5)^[5]
  A solution of 3 (1.0 g, 3.73 mmol) in 6 ml of sulfuric acid was slowly added into a solution of 4 (2.14 g, 7.46 mmol) in 6 ml of sulfuric acid. After heating for 15 hours at 130°C, the reaction solution was added into ice. The precipitate formed was separated by filtration to afford 5 (84%). ¹H NMR (600 MHz, DMSO-d₆) δ 8.78 (s).

N,N-dioctyl-2,6-dibromonaphthalene tetracarboxylic acid bisimide (6)^[5]
   Octyl amine (0.62 ml, 3.76 mmol) was added into a solution of 5 (400 mg, 0.94 mmol) in 32 ml of acetic acid. After stirring for 2 hours at 130°C, the reaction solution was added into ice. The precipitate formed was separated by filtration, and then purified by silica gel column chromatography (CHCl₃) to give 6 (24%). ₁H NMR (600 MHz, CDCl₃) δ8.99 (s, 2H), 4.19 (m, 4H), 1.73 (m, 4H), 1.26 - 1.43 (m, 20H), 0.88 (m, 6H).

5,15-Diphenylporphyrin (9)
   Trifluoroacetic acid (0.6 ml) was added to a solution of dipyrromethane 7^[6] (500 mg, 3.42 mmol) and 8 (727 mg, 6.85 mmol) in 600 mL of CHCl₃. After stirring for 16 h at room temperature, triethylamine (1.2 ml) and chloranil (2.54 g, 10.3 mmol) were added. After stirring for 5 h, the crude material was concentrated and purified by silica gel column chromatography (hexane/CHCl₃ =1:1) to give 9 (15%). TLC (hexane/CHCl₃ =1:1) Rf = 0.30; ¹H NMR (600 MHz, CDCl₃) δ10.3 (s, 2H), 9.37 (d, 4H, J = 4.8 Hz,), 9.07 (d, 4H, J = 4.8 Hz), 8.26 (m, 4H), 7.76- 7.80 (m, 6H), -3.12 (s, 2H, NH); MALDI-TOF Mass C₃₂H₂₂N₄ Calcd: 462.2; Found: 462.5.

5,15-Diphenyl-20-bromoporphyrin (10)
  N-bromosuccinimide (50 mg, 0.28 mmol) was added to a solution of 9 (86 mg, 0.19 mmol) in 15 mL of CHCl₃ at –40δC. After stirring for 15 min, 5 mL of acetone was added. The reaction solution was evaporated and subjected to silica gel column chromatography (hexane/CHCl₃ =1:1) to yield 48 mg of 10 (48%). TLC (hexane/CHCl₃ =1:1) Rf = 0.6; ¹H NMR (600 MHz, CDCl₃) δ10.1 (s, 1H), 9.73 (d, 2H, J = 4.2 Hz), 9.26 (d, 2H, J = 4.2 Hz), 8.95 (m, 4H), 8.21 (d, 4H, J = 6.6 Hz), 7.77 - 7.82 (m, 6H), -3.01 (s, 2H, NH); MALDI-TOF Mass C32

H₂₁BrN₄ Calcd: 540.1; Found: 542.8.

5,15-Diphenyl-20-bromozincporphyrin (11)
  Bromoporphyrin 10 (93 mg, 0.17 mmol) was dissolved in CHCl₃ (40 mL) and 10 mL of a saturated solution of zinc acetate dihydrate in MeOH was added. After stirring for 30 minutes, the mixture was washed with saturated aqueous NaHCO₃ and water (96%). ¹H NMR (600 MHz, CDCl₃) δ 10.2 (s, 1H), 9.80 (d, 2H, J = 4.2 Hz), 9.35 (d, 2H, J = 4.2 Hz), 9.03 (m, 4H), 8.20 (d, 4H, J = 6.0 Hz), 7.75 - 7.80 (m, 6H); MALDI-TOF Mass C₃₂H₁₉BrN₄Zn Calcd: 602.0; Found: 603.1.

5,15-Diphenyl-20-trimethylsilylethynylzincporphyrin (12)
  A vacuum-dried Schlenk flask was charged with bromozincporphyrin 11 (89 mg, 1.5 × 10^-7 mol) and filled with argon. Dry THF (12 mL), triethylamine (2.4 mL), Pd(PPh₃)- 2Cl₂ (5.6 mg, 1.8 × 10^-5 mol), CuI (0.74 mg, 9 × 10^-6 mol), and TMS-acetylene (70 μl) were added into the flask under argon atmosphere. After stirring for 4 hours at room temperature in the dark, the reaction mixture was washed with saturated aqueous NH₄Cl and water, and extracted with CHCl₃. The crude product was purified by silica gel column chromatography (CHCl₃) to give 72.8 mg of 15 as a red solid (78%). ¹H NMR (600 MHz, CDCl₃) δ10.2 (s, 1H), 9.80 (d, 2H, J = 4.8 Hz), 9.34 (d, 2H, J = 4.8 Hz), 9.03 (m, 4H), 8.22 (d, 4H, J = 6.0 Hz), 7.78 - 7.81 (m, 6H), 0.62 (s, 9H); MALDI-TOF Mass C₃₇H₂₈N₄SiZn Calcd: 620.1; Found: 620.6.

5,15-Diphenyl-20-ethynylzincporphyrin (13)
  In a vacuum-dried Schlenk flask under an argon atmosphere, a 1 M THF solution of Tetrabutylammonium fluoride (0.51 ml, 0.51 mmol) was added to a solution of 12 (72.8 mg, 0.12 mmol) in chloroform (25 mL). After stirring for 30 minutes at room temperature, water was added and extracted with chloroform. The crude was purified by silica gel column chromatography (CHCl₃) to give 51.4 mg of 13 (78%) as a red solid. 1H NMR (600 MHz, CDCl₃) δ10.3 (s, 1H, d), 9.83 (d, 2H, J = 4.8 Hz), 9.35 (d, 2H, J = 4.8 Hz), 9.05 (m, 4H), 8.32 (d, 4H, J = 6.0 Hz), 7.79 - 7.82 (m, 6H), 9.05 (m, 1H); MALDI-TOF Mass C₂₄H₂₀N₄Zn Calcd: 548.1; Found: 549.1.

Target 2
  In a vacuum-dried Schlenk flask under an argon atmosphere, porohyrin 13 (38 mg, 6.9 × 10^-5 mol), 6 (20.4 mg, 3.14 × 10^-5 mol), Pd₂(dba)₃ (16.3 mg, 1.57 × 10^-5 mol), and AsPh₃ (19.2 mg, 6.28 × 10^-5 mol)) were dissolved in anhydrous THF (26 mL) and triethylamine (4.7 ml). After stirring for 2 hours at room temperature, water was added and extracted with chloroform. The solution was washed with saturated aqueous NH₄Cl and water. The crude was purified by preparative GPC to give 10.3 mg of target (21%) as a brown solid. MALDI-TOF Mass C₁₁₁H₁₂₃N₁₀O₄Zn₂ Calcd: 1582.5; Found: 1584.5.

Measurement of nonlinear absorption
  The effective two-photon absorption measurements were performed using an optical parametric oscillator (Continuum Surelight OPO) pumped with a THG beam (355 nm) from a Q-switched Nd:YAG laser (Continuum Surelight I-10)[4, 7a, 8]. The pulse width and the repetition rate were 5 ns and 10 Hz, respectively. The incident laser light was focused by a plano-convex lens (f = 100 mm) giving a beam waist of around 0.035 mm. The sample solution was placed in a 2 mm quartz cuvette and stirred using a magnetic bar during the measurement.

Results and Discussion

  Synthetic routes for the target molecule 2 are shown in Scheme 2. First, naphthalene-1,4,5,8-tetracarboxylic dianhydride was brominated using 4, which was prepared from isocyanuric acid with LiOH and bromine, to afford 5^[5]. Diimide 6 was synthesized by the reaction of 5 with octyl amine^[5]. Dipyrromethane 7 was prepared according to the literature^[6]. Porphyrin 9 was synthesized from 7 and 8 using trifluoroacetic acid in 15% yield. Monobromoporphyrin 10 was prepared from 9 using 1.5 equivalents of N-Bromosuccinimide (NBS) at –40°C in 48% yield. Bromoporphyrin 10 was metalated by zinc acetate to give 11. TMS-ethynylzincporphyrin 12 was obtained from 11 by the reaction with TMS-acetylene using a Pd(PPh)₂Cl₂/ CuI catalytic system in THF/triethylamine (TEA) in 78% yield. The TMS group in 12 was deprotected using TBAF to afford 13. The cross-coupling reaction of 13 and 6 was conducted by using Pd₂(dba)₃/AsPh₃ as a catalyst system at room temperature to obtain the target 2, which was isolated using preparative Gel Permeation Chromatography (GPC) using pyridine as an eluent. The yield of the target was 21%. The purity and identification were confirmed by analytical GPC and MALDI-TOF mass, as shown in Figures 1. (Scheme 2) Figure 2 shows one-photon absorption spectrum of 2 in pyridine. The Soret and Q bands appeared at around 440 and 790 nm, respectively, which were redshifted compared with those of 12 indicating expansion of π-conjugation between porphyrins. The nonlinear absorption measurement was performed using a nanosecond open-aperture Z-scan method at a wavelength range from 960 to 1060 nm, where one-photon absorption was negligible. Figure 3 inset shows typical Z-scan trace of 5 × 10^-6 M in pyridine at 980 nm with theoretically fitted curves according to the following equations^[7]. In this figure, normalized transmittances were plotted as a function of the sample position, z, and the dip was observed around the focal position due to nonlinear absorption.

1)
2)
(3) q₀ = α⁽²⁾ (1-R)I₀ L_eff
(4) L_eff = [1-exp(-α(1)L)]/α(1)
(5) eff_σ⁽²⁾ = ħωα⁽²⁾ / N

where ζ denotes the normalized z-position (ζ = (z-z₀)/z_R), and z₀ and z_R mean the focal position and the Rayleigh range, respectively. α(1) denotes a one-photon absorption coefficient and R is the Fresnel reflectance. L denotes the light path length (2 mm) and α(2) denotes the 2PA coefficient. Leff is the effective path length and I₀ denotes the peak intensity at the focal position. N is the number density of the molecule and ħω is the photon energy of the incident light. Finally, the effective TPA cross section value effσ (2) was calculated using equation (5). (Figure 3)

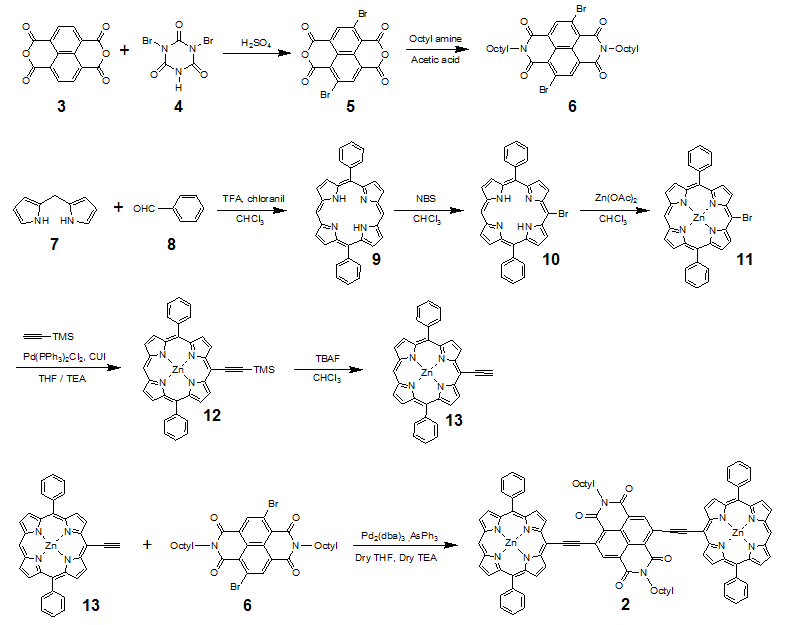

Scheme 2: Synthetic route for 2.

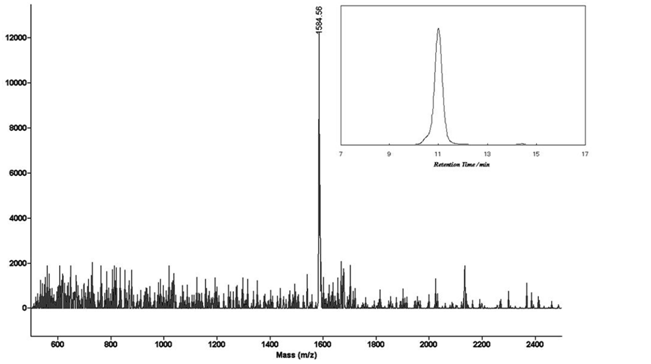

Figure 1: MALDI-TOFF mass and analytical GPC (inset) charts of 2.

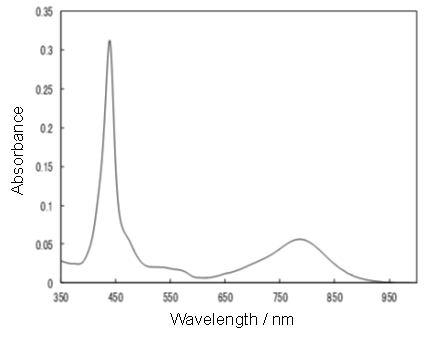

Figure 2: Absorption spectrum of 2 in pyridine.

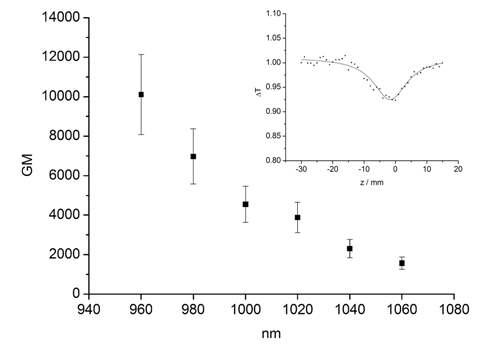

Figure 3: Effective TPA spectra of 2 measured using nanosecond pulses in pyridine and typical open-aperture Z-scan traces at 980 nm (inset).

  The maximum eff_σ⁽²⁾ value was obtained as 10100 ± 2000 GM at 960 nm. The peak could not be measured at around 900 nm that was almost twice as long as those of the Soret band due to the existence of one-photon absorption. Although the peak could not be obtained for 2, the eff_σ⁽²⁾ value obtained for 2 at 960 nm is 1.3 times larger than that for 1. In general, the eff_σ⁽²⁾ value measured using nanosecond laser pulses is 2 - 3 orders of magnitude larger than that obtained with femtosecond pulses because of the contribution of excited state absorption (ESA) to the signal. This effect is difficult to separate from the pure TPA signal. Therefore, the values obtained in this study cannot be compared with the pure (2) values measured using femtosecond pulses, which were reported in most literatures. Even if the reported values were measured using nanosecond pulses, the fair comparison is difficult because the ESA contributions are different between the compound systems. However, in some applications using TPA materials (such as TPA-PDT or the creation of 3-D optical memory devices), a laser with a nanosecond pulse may be more appropriate because of the easiness of operation and availability. For this reason, we consider it important to examine the nonlinear absorption properties using nanosecond pulses.

Conclusion

  We have successfully synthesized novel ethynylene-linked bisporphyrin conjugated with naphthalene bisimide as an electron acceptor by palladium-catalyzed cross-coupling reaction. The purity and identification were confirmed by analytical GPC and MALDI-TOF mass. One-photon absorption spectra showed the red-shifted Soret and Q bands, indicating expansion of π-conjugation The maximum eff_σ⁽²⁾ value including the ESA contribution was observed as 10100 GM at 960 nm measured using a nanosecond Z-scan method. This value was 1.3 times larger than the value obtained for bisporphyrin without electron acceptor.

Acknowledge:
  This work was supported by Grant-in-Aids for Scientific Research (C) (No. 15K05471) from Ministry of Education, Culture, Sports, Science and Technology, Japan (Monbu Kagakusho).
